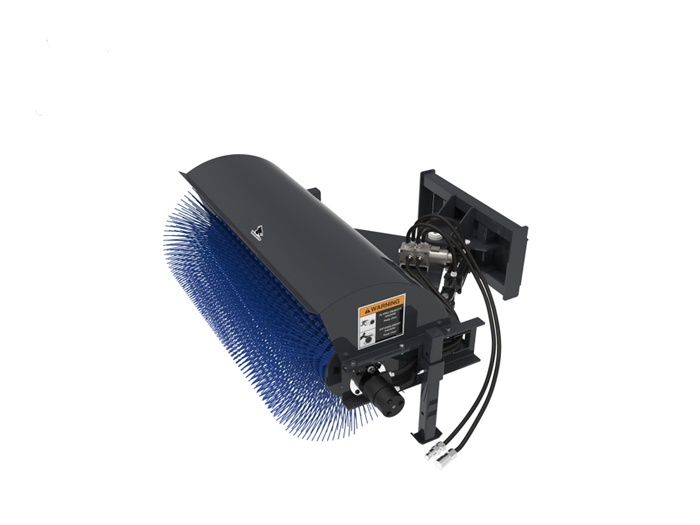

Mini Hydraulic Angle Broom

The Mini Skid Steer Angle Broom Sweeper Broom angles Hydraulically and is designed for heavy duty sweeping of dirt, snow, and other unwanted material. It quickly mounts to your mini skid steer. Featuring a 48” width and optional hydraulic angle change, this attachment is designed to go anywhere to get the job done!

SKU: MAB-11-48W

CONTACT US

The Mini Skid Steer Angle Broom Sweeper Broom angles Hydraulically and is designed for heavy duty sweeping of dirt, snow, and other unwanted material. It quickly mounts to your mini skid steer. Featuring a 48” width and optional hydraulic angle change, this attachment is designed to go anywhere to get the job done!

• Direct-drive design
• Power angling (optional)
• Manually angles 25 degrees in either direction
• Two(2) adjustable / removable storage stands
• 24″ diameter zig-zag style poly wafers / brushes
• Flow range of 7-16 GPM (gallons per minute)

Num
Item Parameter
1
Width

48 in

2
Working Width at 25° Angle

43.5 in

3 Overall Width 58.5 in
4 Weight 375 lbs
5 Max Angle (Right/Left) 25°
6 Bristle Diameter 26"
7 GPM Range 12-20 gpm
8 Operating PSI
2000-3000 psi
