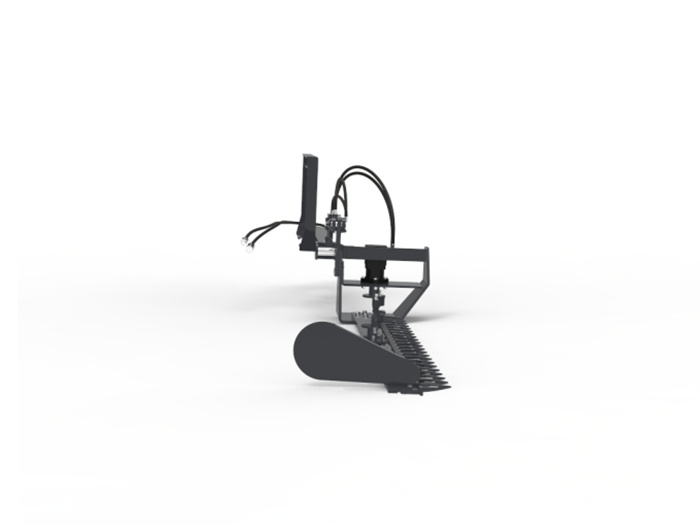

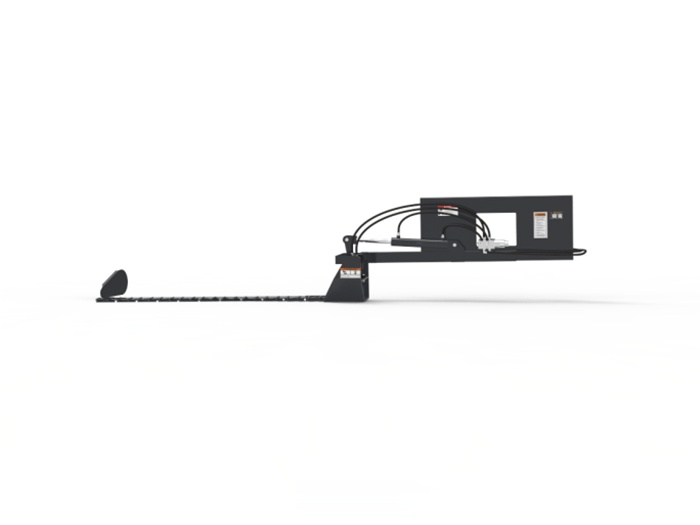

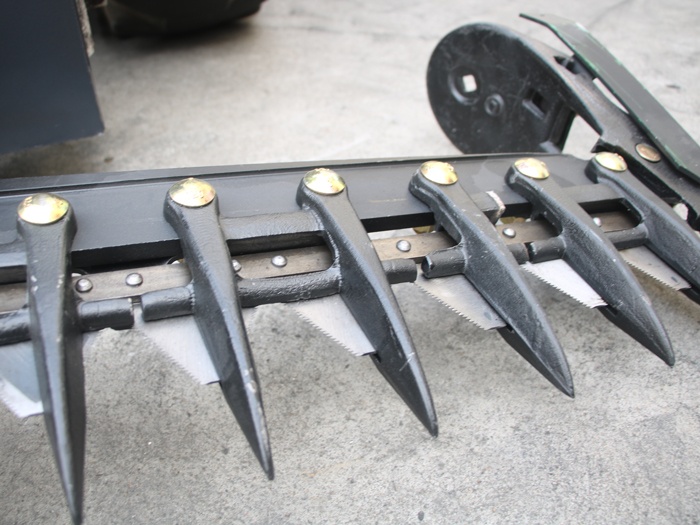

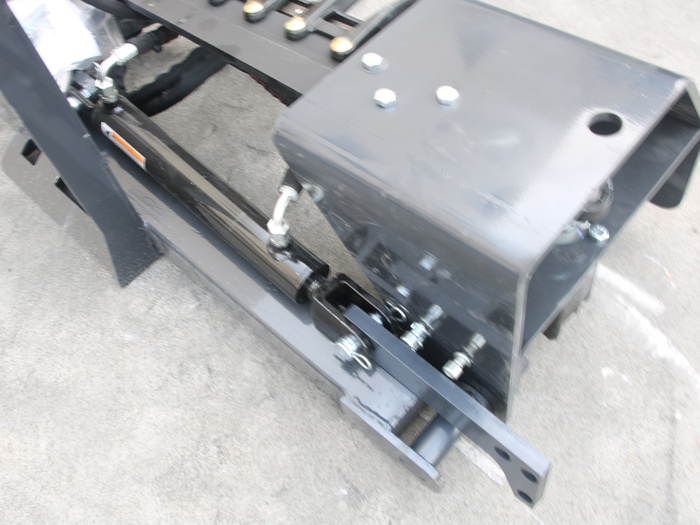

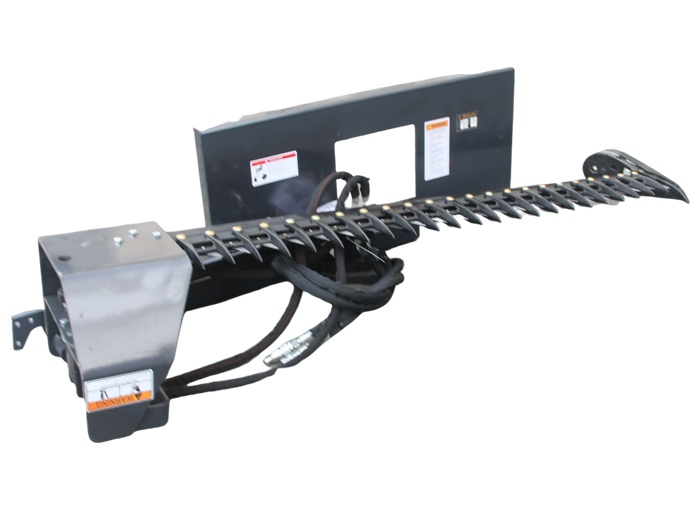

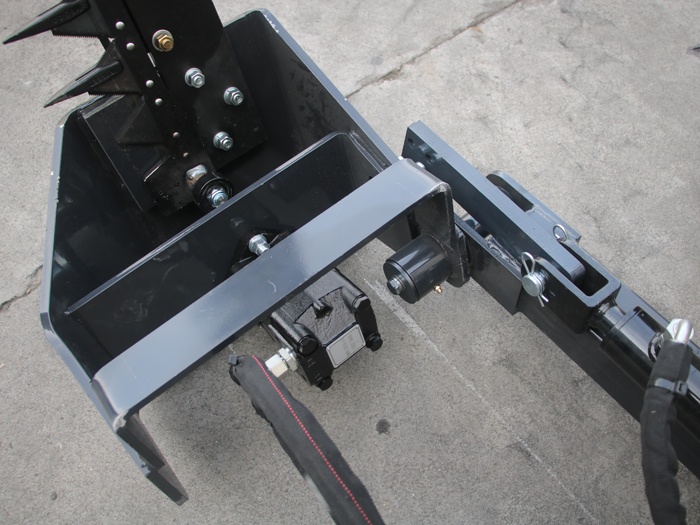

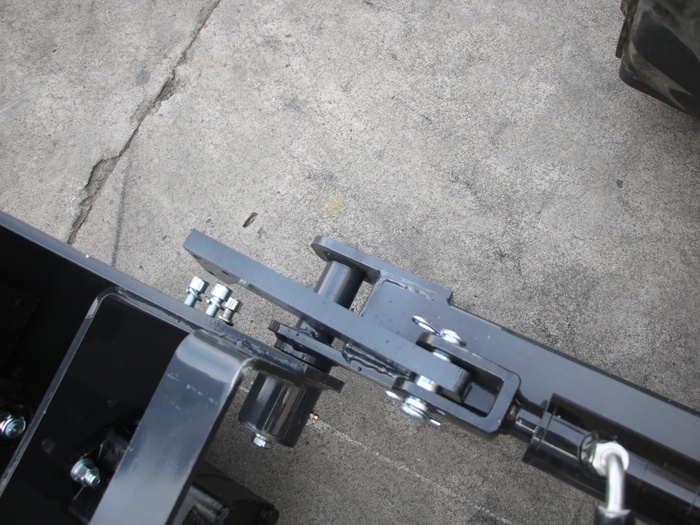

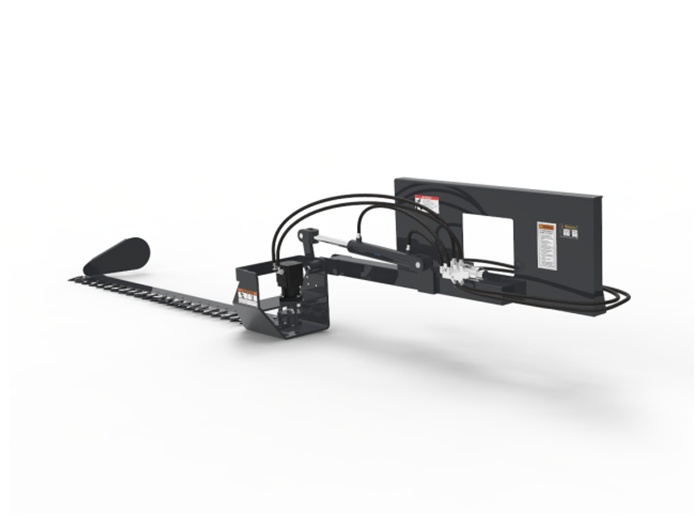

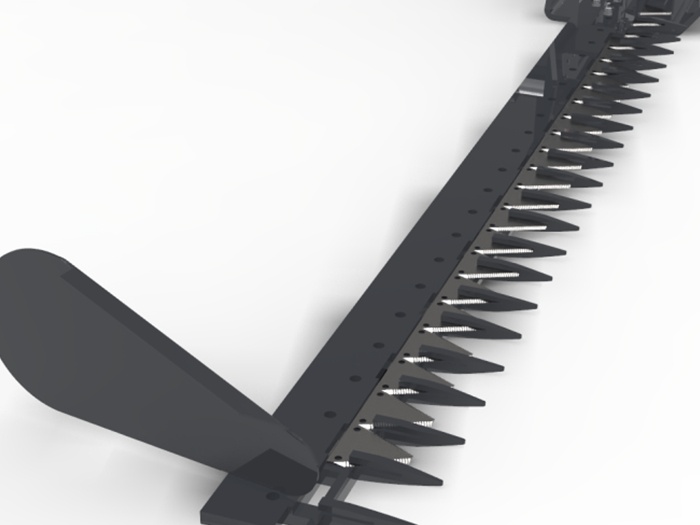

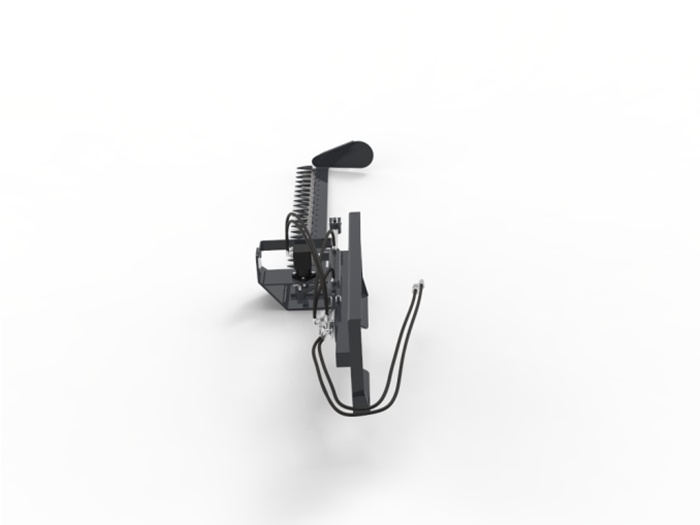

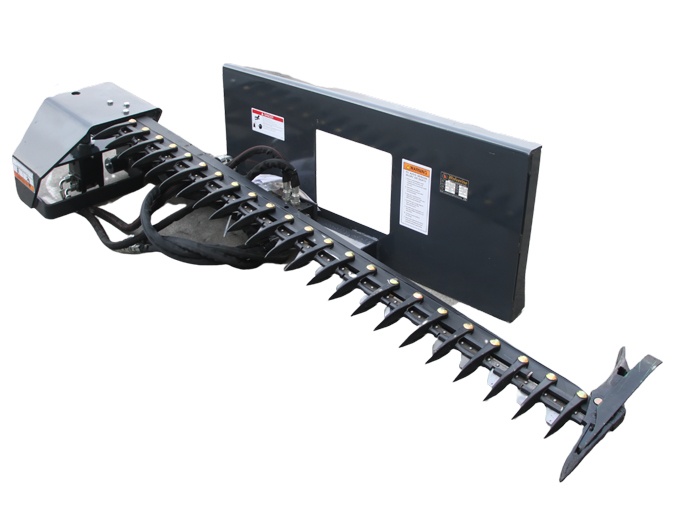

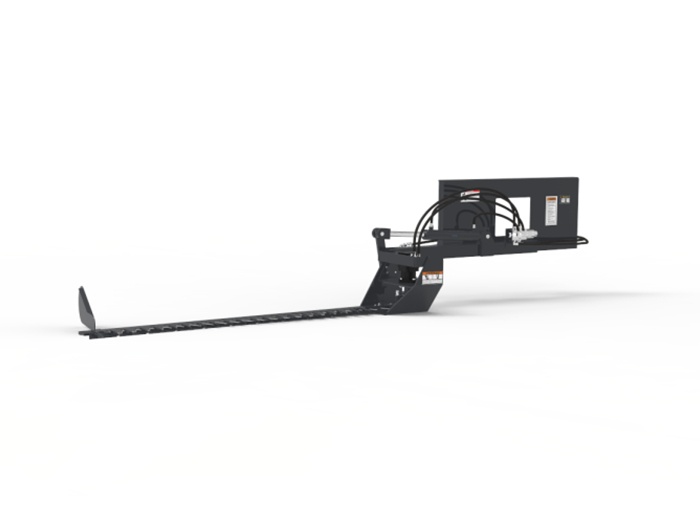

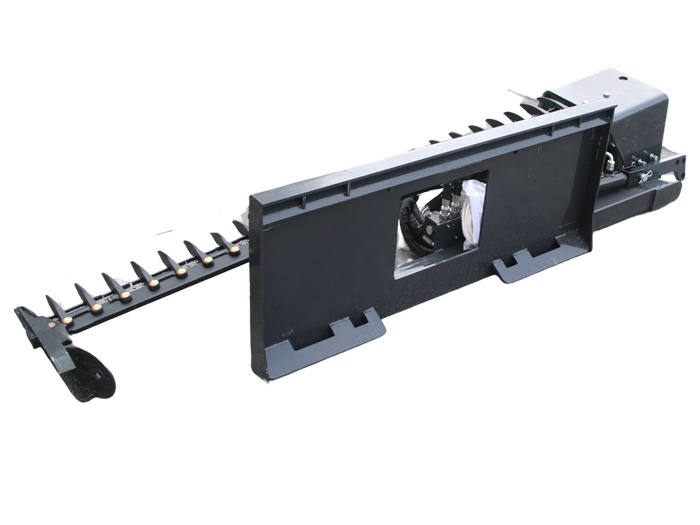

Sickle Bar Mower
Sickle Bar Mowing Attachment for Skid Steer Loaders. The performance and quality will meet even the highest standards. This Sickle Bar is fitted for use on Skid Steer loaders.
SKU: SBM-12-72W
Sickle Bar Mowing Attachment for Skid Steer Loaders. The performance and quality will meet even the highest standards. This Sickle Bar is fitted for use on Skid Steer loaders. To operate this cutter at an optimal performance, your machine must have a hydraulic flow rate of 15 GPM - 25 GPM @ 3000 PSI Rated.
|
Num |
Item | Parameter |
|
1 |
Weight |
326 lbs |
|
2 |
Lengh |
150in |
| 3 | Width | 24in |
| 4 | Height | 31in |
| 5 | Cutting Capacity | 1" Material |
| 6 | Cutter Length | 72" |
| 7 | Number of Teeth | 25 |
| 8 | Flow Range | 9-22 gpm |
| 9 | Drive System | Gerotor |
| 10 | Motor w/Pitman drive Tooth Style | Top Serrated 2" Segment |
| 11 | Rated working pressure |
3000 psi |
| 12 | Maximum swaying degree | 130° |
| 13 | Maximum head bend | 90° |
| 14 | Maximum head tilt | 30° |
