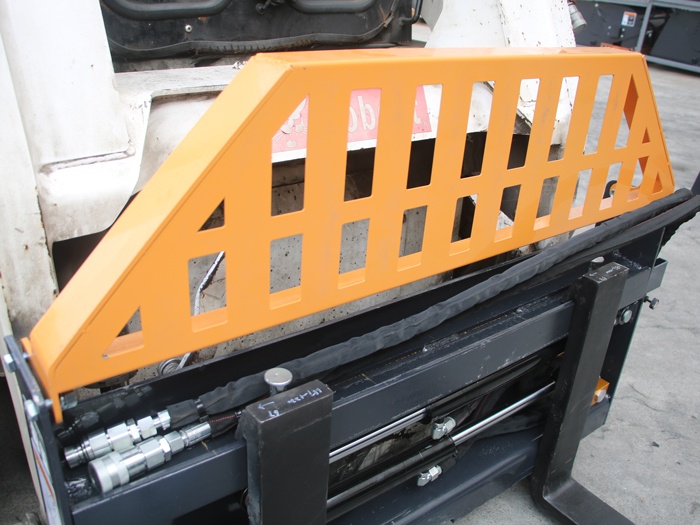

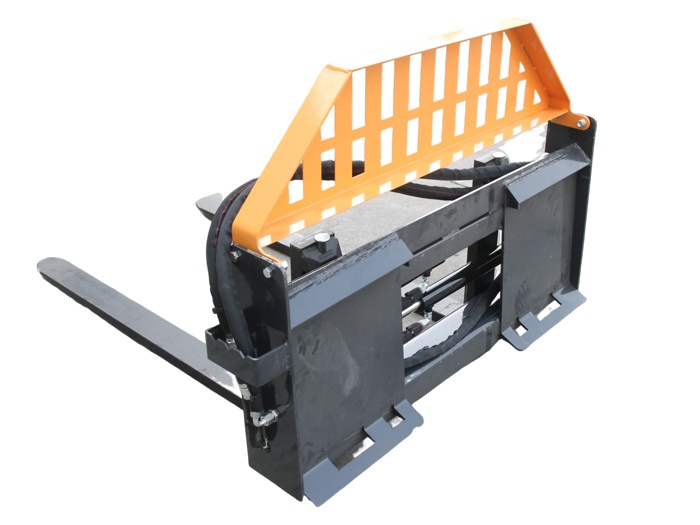

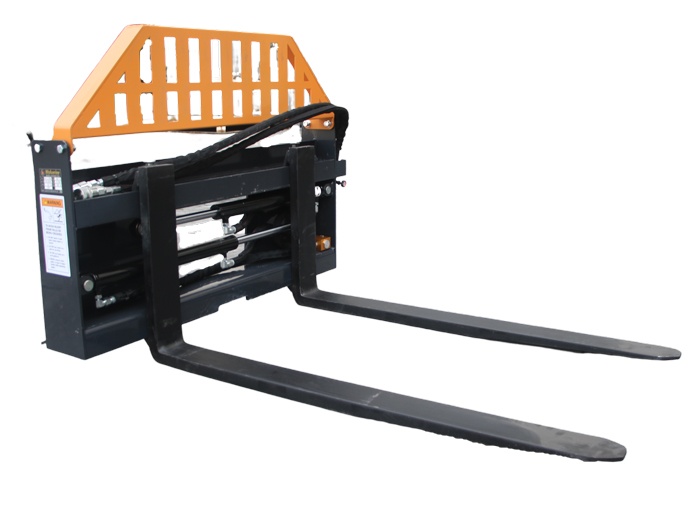

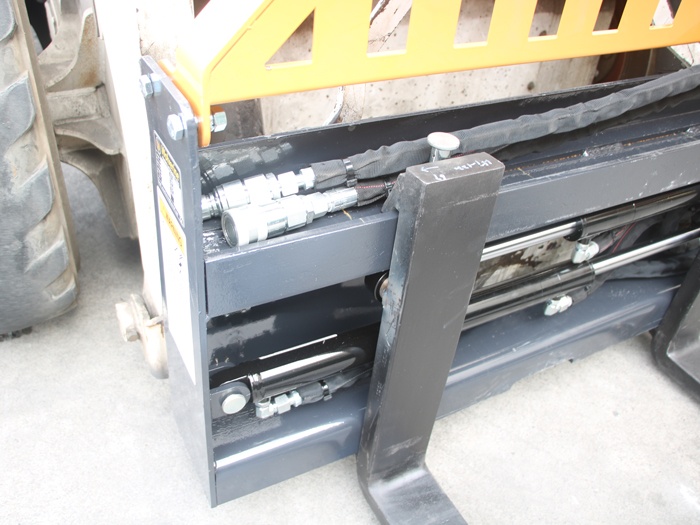

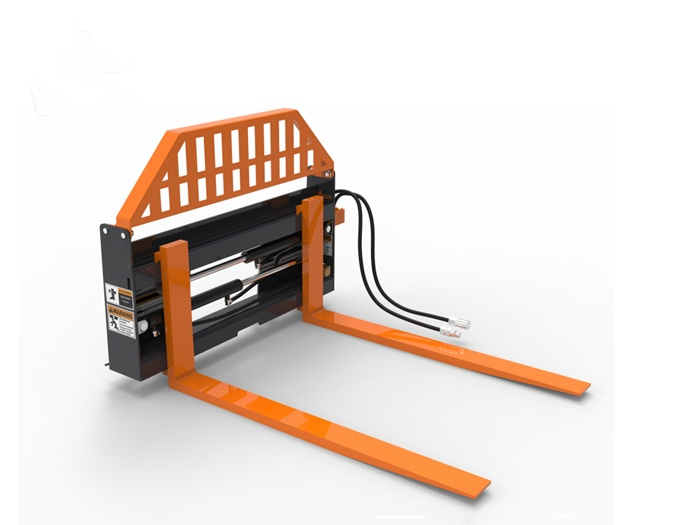

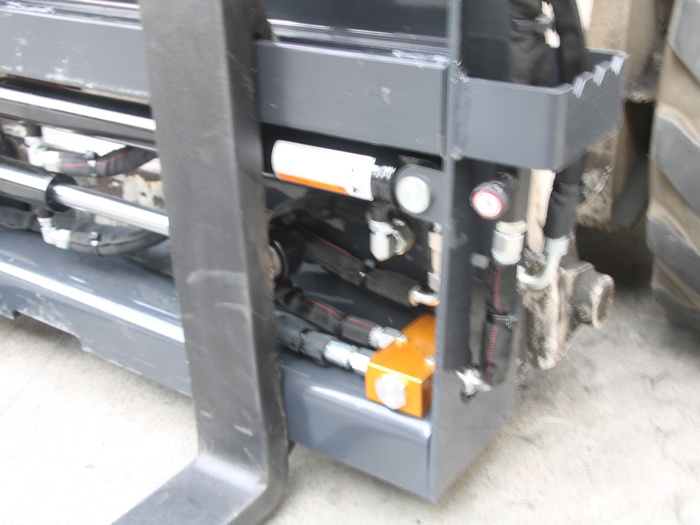

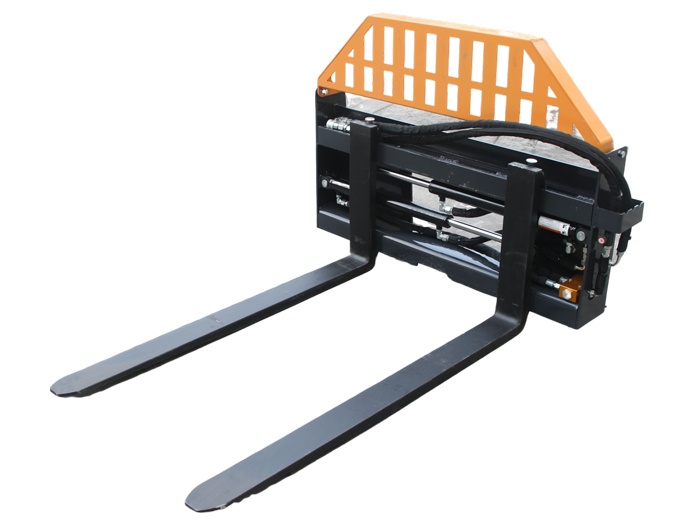

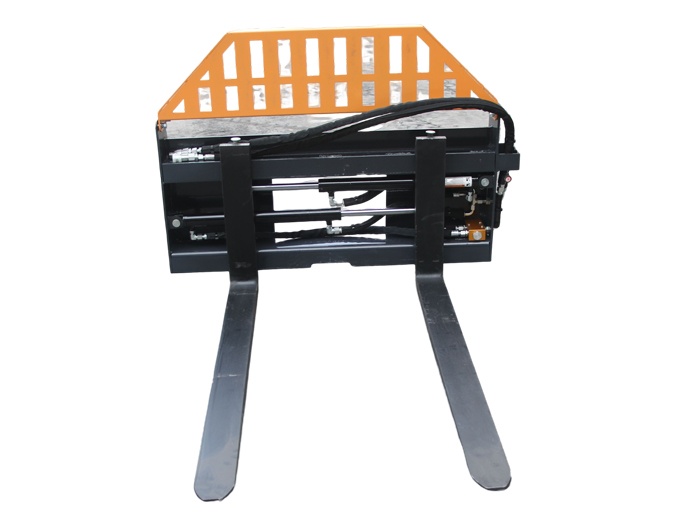

Pallet Fork Hydraulic Adjustable

The Skid Steer Pallet Fork Hydraulic Adjustable are 58" long Class II are 1 1/2 inches thick, 4 inches wide, completely heat treated. Our forks are completely adjustable and come with side steps to make it easy for you to climb in and out of you machine.

SKU: PFA-11-3300G

CONTACT US

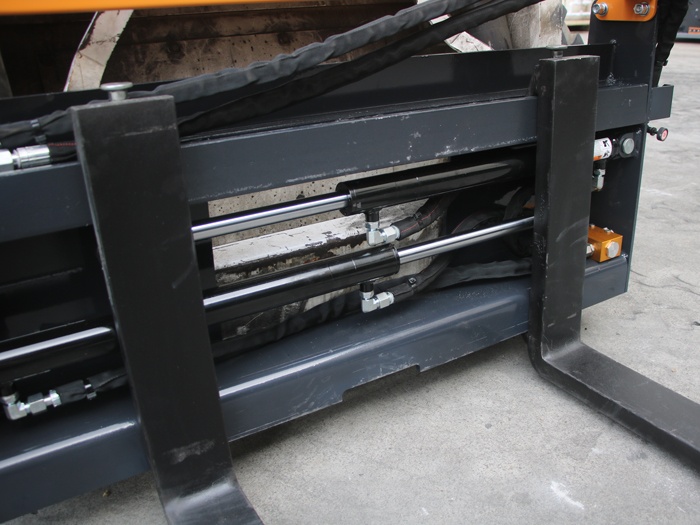

The Skid Steer Pallet Fork Hydraulic Adjustable are 58" long Class II are 1 1/2 inches thick, 4 inches wide, completely heat treated. Our forks are completely adjustable and come with side steps to make it easy for you to climb in and out of you machine. The frame is constructed from 3” channel and 2” x 3” angle that is 3/8” thick. The forks are rated at 4000 lbs. These forks are designed for Smaller loaders that don't need the extra capacity of our normal skid steer loader.These forks permit the operator to hydraulically infinitely variably adjust the width of the tines without having to exit the operators cab.

Num
Item Parameter
1
Weight

473 lbs

2
Width

45 in

3 Height 35.5 in
4 Length 58 in
5 Fork Rating 4,000 lbs
6 Mounting Universal Skid Steer
7 Forks 58 in Long Adjustable With Locks
8 Side Steps 2
9 Rated working pressure 3000 psi
10 Fork Tines LxWxH 58" x 4" x 1 1/2" Class II
