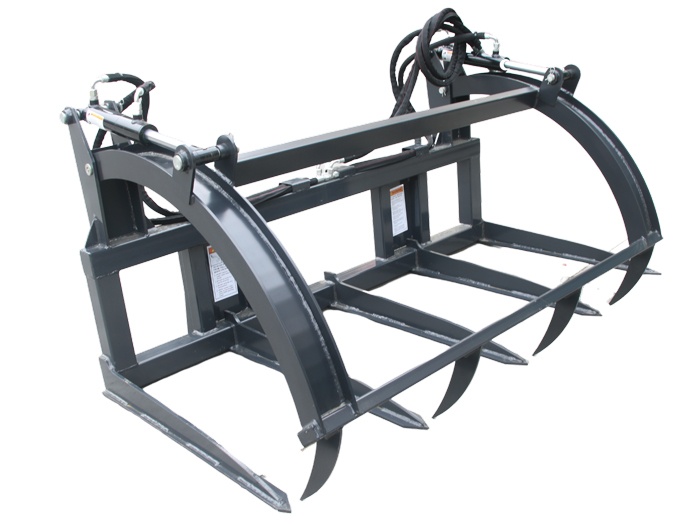

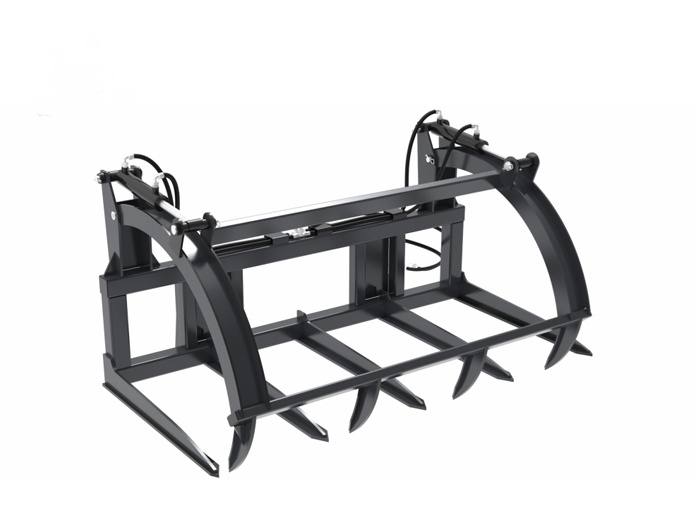

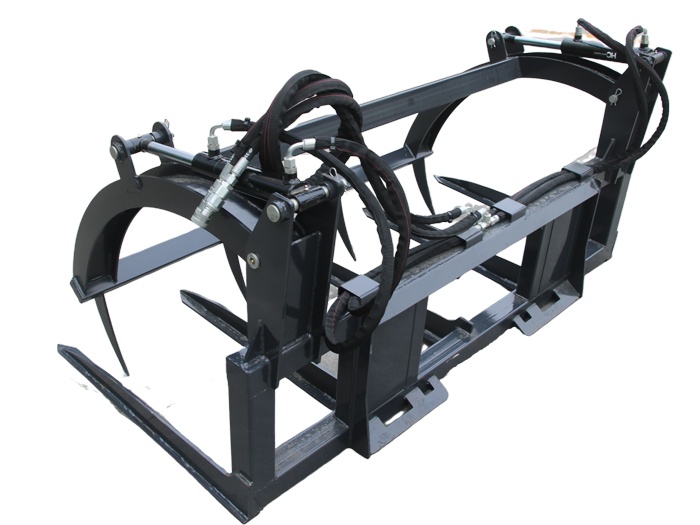

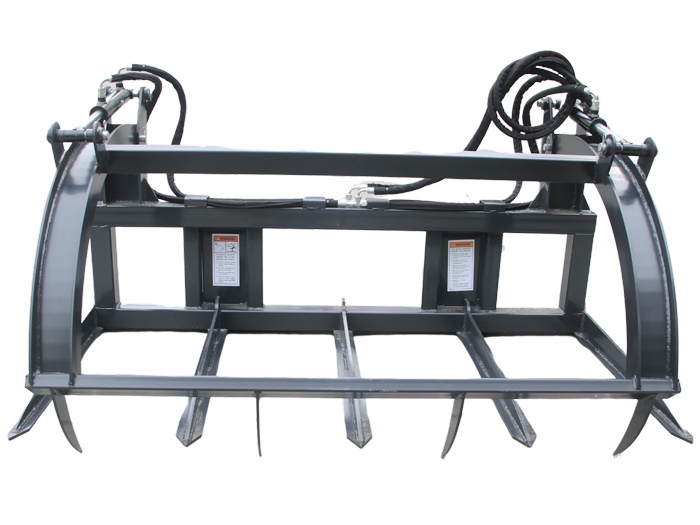

Bale grapple
If you own a farm, ranch, acreage or just find yourself offloading, loading and handling hay bales all of the time, a Bale grapple fitted on a skid steer loader can get the job done fast for you.
SKU: BG-13-72W

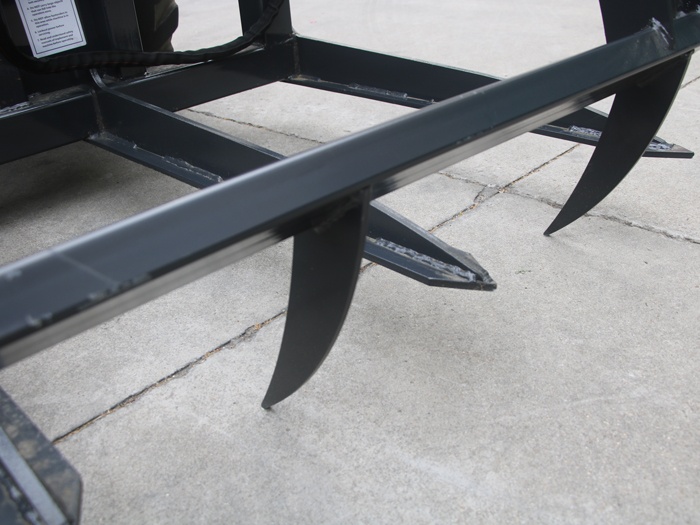

If you own a farm, ranch, acreage or just find yourself offloading, loading and handling hay bales all of the time, a Bale grapple fitted on a skid steer loader can get the job done fast for you. Move quickly and rely on the Bale Grapple when it's time to start baling. For the best performance when it comes to bailing, the Bale Grapple features a large jaw opening, and curved tine that penetrate bales with minimal damage.
Num |
Item | Parameter |
1 |
Weight |
500 lbs |
2 |
Width |
74" |
3 | Height | 30.8" |
4 | Depth | 40.8" |
5 | Bucket Tines | 5 |
6 | Tine Thickness | 4" |
7 | Number of Grapple Teeth | 3 - 4 |
8 | Space Between Grapple Teeth | 18.4" |
9 | Grapple Jaw Opening | 60.6" |
10 | Recommended Loader Capacity | Greater than 2,400lbs |
11 | Steel Surcharge | Yes |
