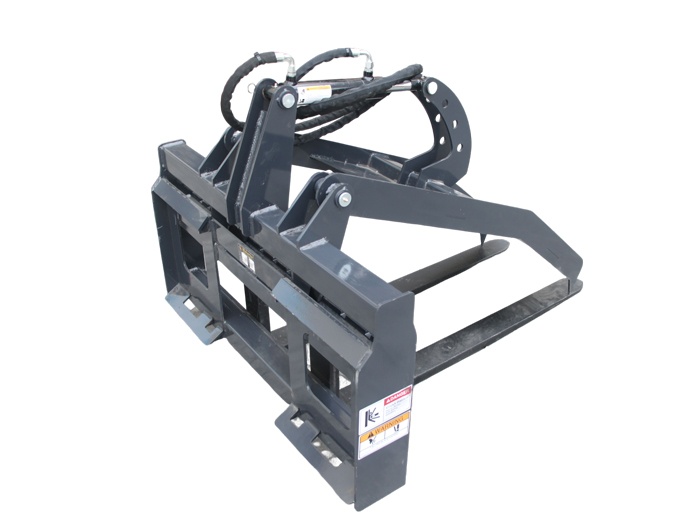

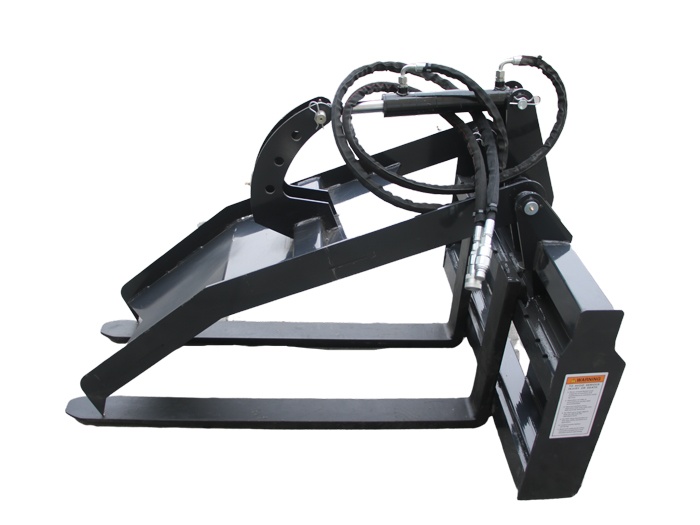

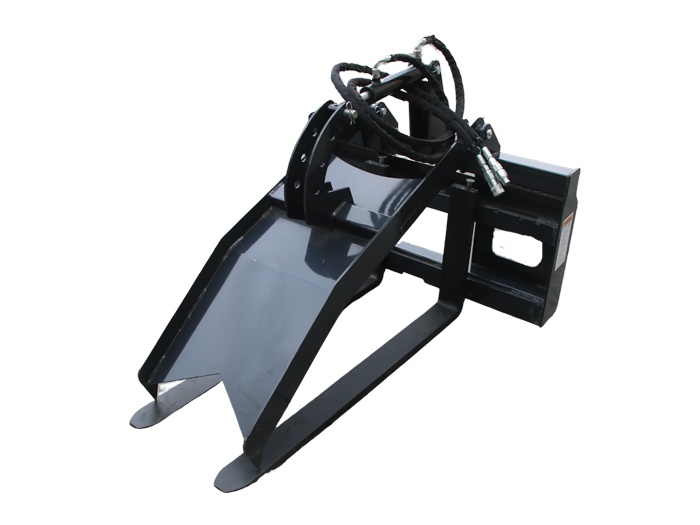

Fork Grapple
Our Professional Series fork grapple will work great for the sawmill operator, the logger who needs to grab some logs, or the utility contractor that needs to grab pipe or poles or stabilize the pallet they are lifting. The fork grapple is adjustable so you can open larger or close tighter. The price listed is with 48" long fork tines rated for 4,000 lbs capacity.
SKU: FGP-11-3500G
Our Professional Series fork grapple will work great for the sawmill operator, the logger who needs to grab some logs, or the utility contractor that needs to grab pipe or poles or stabilize the pallet they are lifting. The fork grapple is adjustable so you can open larger or close tighter. The price listed is with 48" long fork tines rated for 4,000 lbs capacity.
| Num | Item | Parameter |
| 1 | Weight | 600 lbs |
| 2 | Overall Height | 41.4 in |
| 3 | Overall width | 45.3 in |
| 4 | Overall Length | 54.5 in |
| 5 | Tine Length | 48 in |
| 6 | Cylinder Size | 2 in x 8 in |
| 7 | Opening Full Height | 7 in |
| 8 | Max Height Closed | 41.3 in |
| 9 | Max Capacity | 4000 lbs |
