Trench cutters

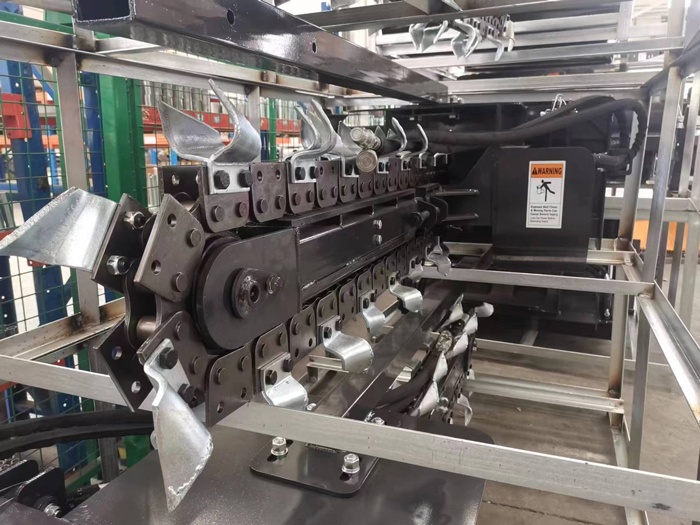

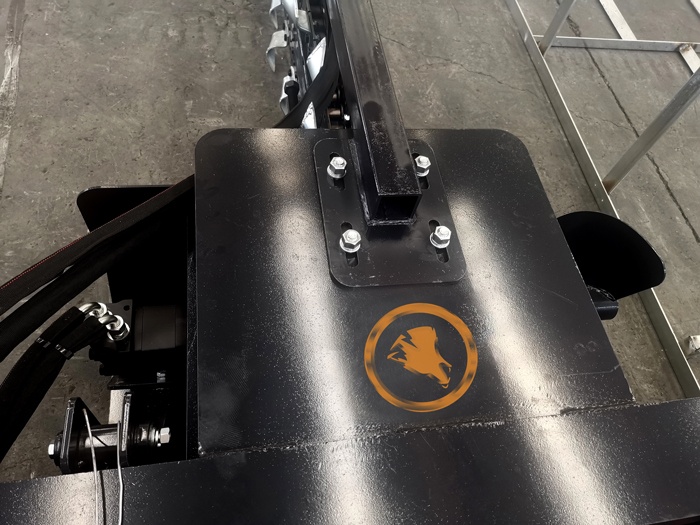

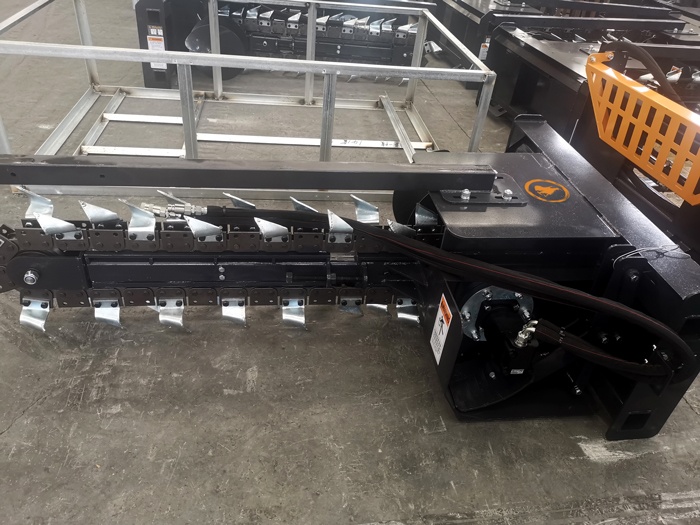

The Skid Steer Trencher excels at trenching in all types of ground conditions. Trench water or cable lines through dirt, rocky soil, gravel driveways. The trencher is available for 48" digging depths, 8" widths, and hydraulic flow 20-30 gpm.
SKU: TCR-12-48H
The Skid Steer Trencher excels at trenching in all types of ground conditions. Trench water or cable lines through dirt, rocky soil, gravel driveways. The trencher is available for 48" digging depths, 8" widths, and hydraulic flow 20-30 gpm. This motor is fully protected from dirt and debris making it as reliable as any other skid steer trencher on the market.
|
Num |
Item | Parameter |
|
1 |
Weight |
826 lbs |
|
2 |
Pack Size/unit L*W*H |
2291*1236*705 mm |
| 3 | Trenching Depth | 48 in |
| 4 | Trenching Width | 8 in |
| 5 | Flow Rec | 15-25 GPM |
| 6 | Clearing Auger Diameter | 15 in |
| 7 | Maximum trenching depth | 1225 |
| 8 | Number of tools | 34 |
| 9 | Spiral diameter: | 400 mm |
| 10 | Continuous working pressure | 17 Mpa |
