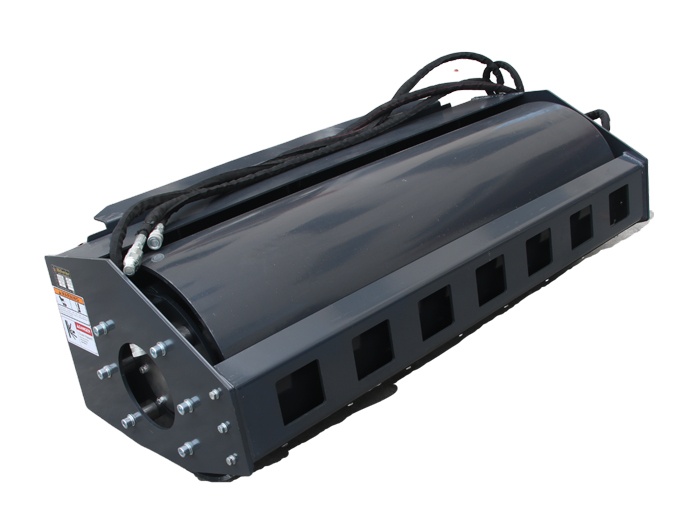

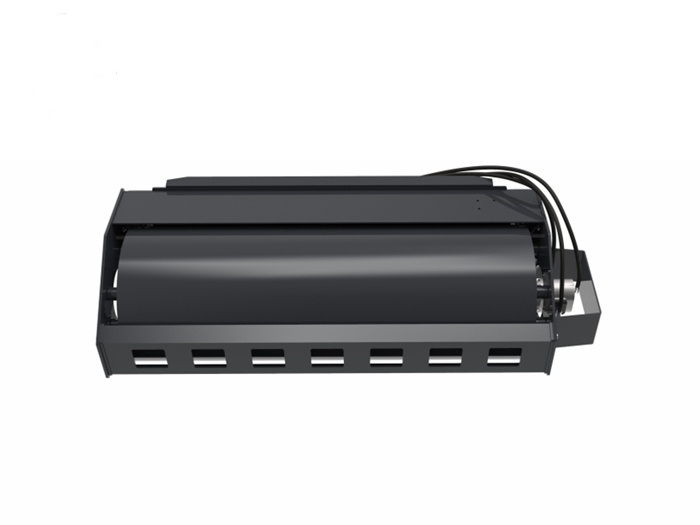

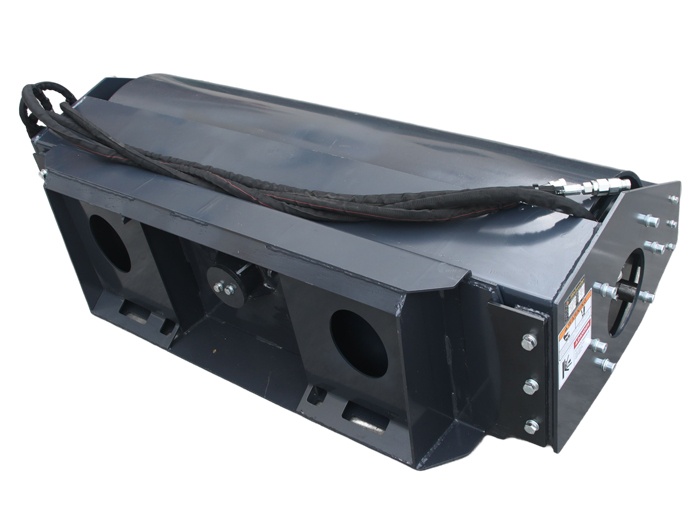

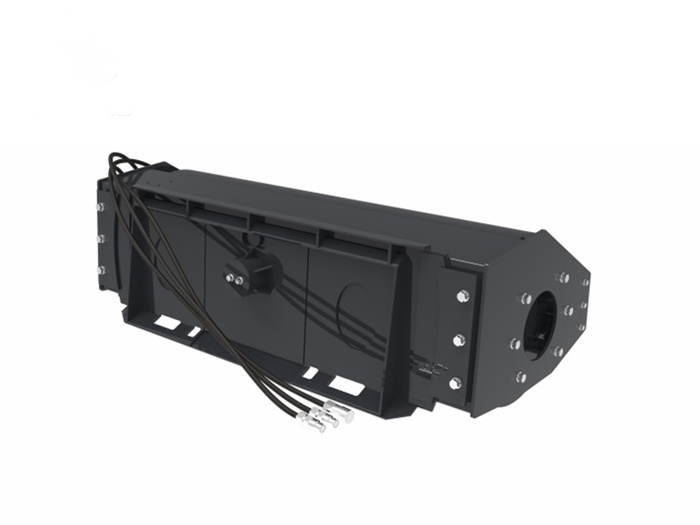

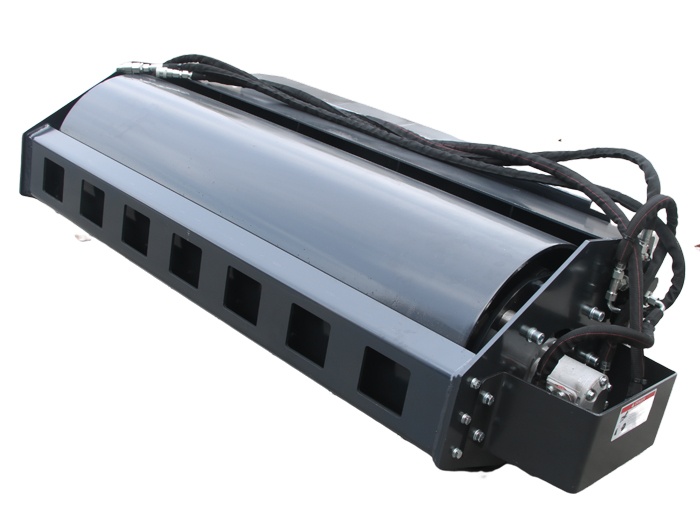

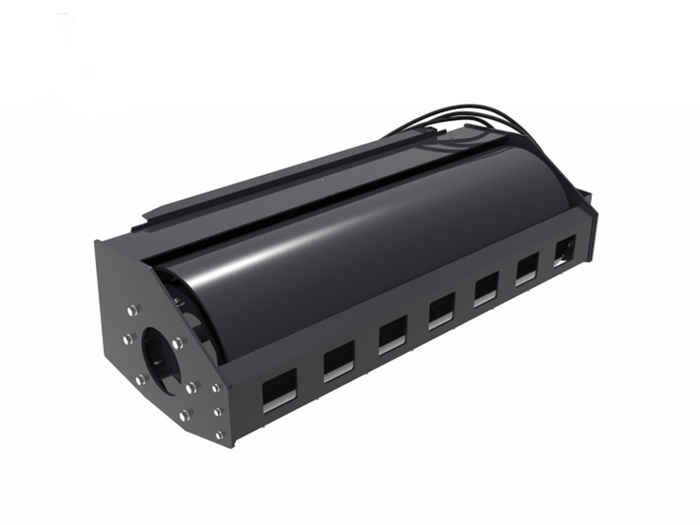

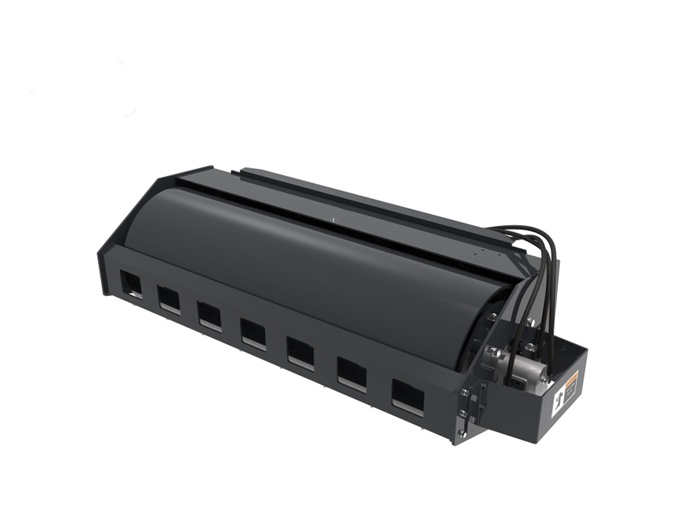

Vibratory Roller

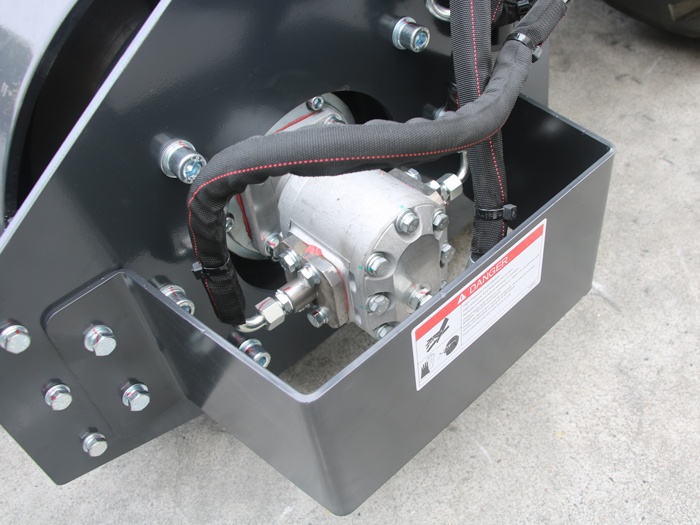

The Vibratory Roller Attachment can deliver up to 7200 lbs. of dynamic force when operating at 20 GPM. These commercial duty rollers have hydraulic drives that are protected and isolated to provide maximum performance and reliability.
SKU: VR-11-66W
The Vibratory Roller Attachment can deliver up to 7200 lbs. of dynamic force when operating at 20 GPM. These commercial duty rollers have hydraulic drives that are protected and isolated to provide maximum performance and reliability. Their versatility makes them highly effective on a wide range of materials including sand, gravel, soils and asphalt.
|
Num |
Item | Parameter |
|
1 |
Width |
66 in |
|
2 |
Model |
ZVR72 (72″) |
| 3 | Stimulation force | 3.3 T |
| 4 | Maximum input flow | 25 gpm |
| 5 | Output stable flow | 16 gpm |
| 6 | Drum Type | Smooth |
| 7 | Drum Width | 66 in |
| 8 | Discharge Height | 30/69 in |
| 9 | Overall Width | 72 in |
| 10 | Height (overall) | 31 in |
| 11 | Length (overall) | 39 in |
| 12 | Drum Diameter | 24 in |
| 13 | Dynamic Force | 7200 lbs |
| 14 | Vibrating Speed (vpm) | 2600 vpm |
| 15 | Vibrating Weight: |
1609 lbs |
| 16 | Drum Oscillation/Tilt | ±15° |
| 17 | Max Hydraulic Flow |
25 gpm |
| 18 | Max Hydraulic Flow: | 14～122℉ |
| 19 | Operating Weight | 2150 Lbs. |
