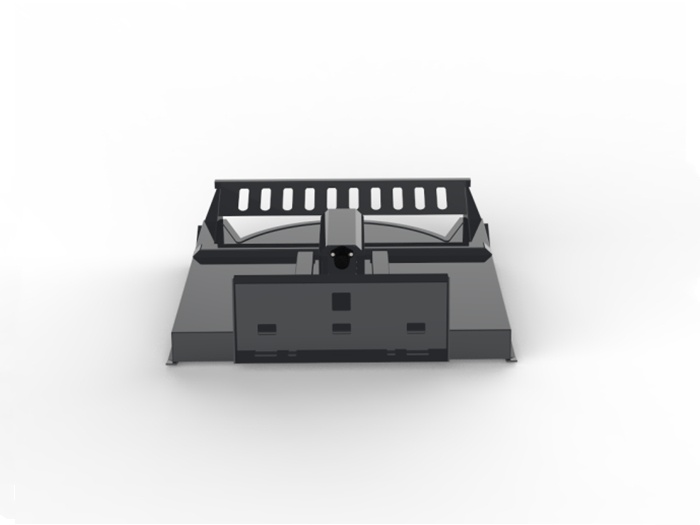

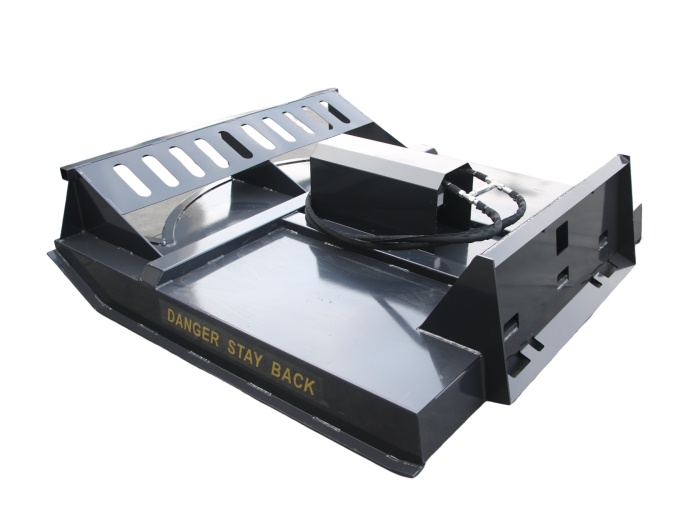

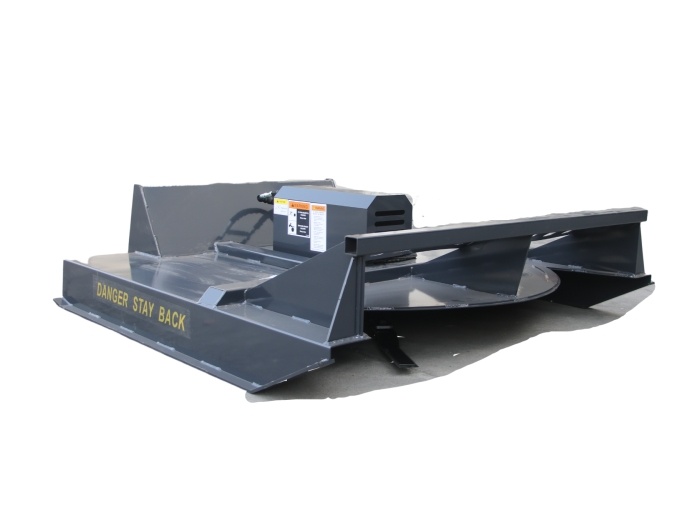

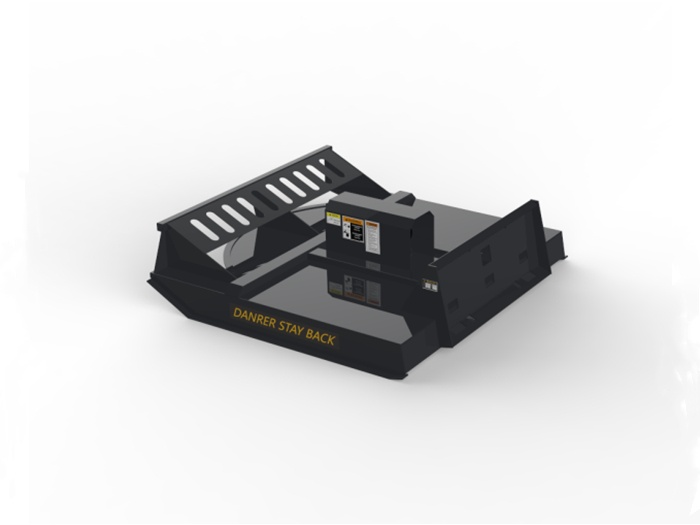

Hydraulic Brush Cutter

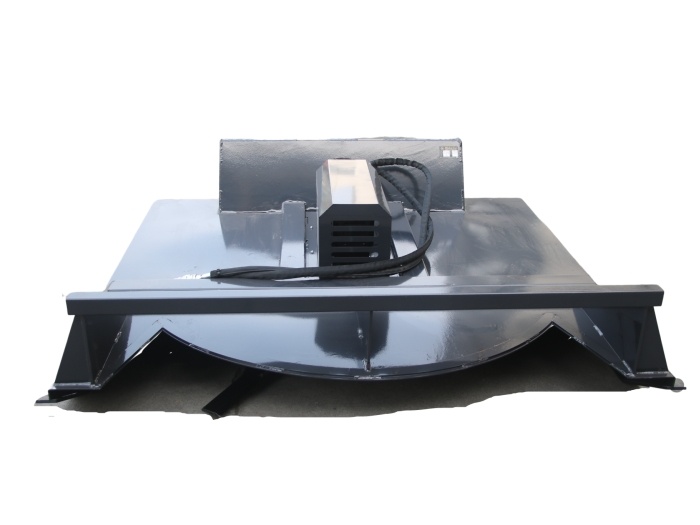

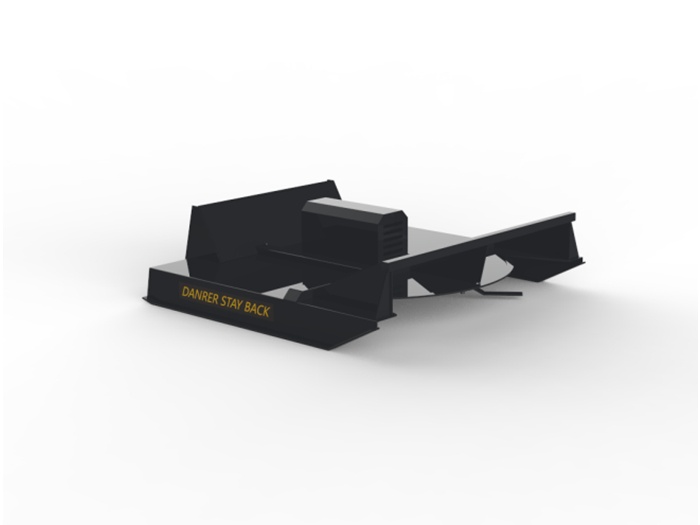

The Skid Steer Brush Cutter Attachment comes with a 72" wide mowing deck that provides a finish cut swath 66" wide and will cut up to 3" dia material. It features 2 bi-directional blades, a 25HP gear box and stump jumper. A flow of 14-20 gpm is required.
SKU: BC-13-72W
The Skid Steer Brush Cutter Attachment comes with a 72" wide mowing deck that provides a finish cut swath 66" wide and will cut up to 3" dia material. It features 2 bi-directional blades, a 25HP gear box and stump jumper. A flow of 14-20 gpm is required.
• Fits Universal Skid Steer Quick Attach
• 2″ Cutting Capacity

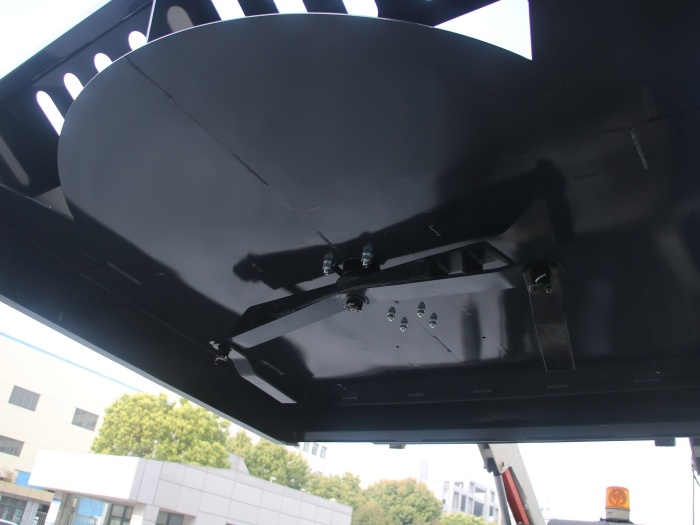

• 2 Cutting Blades
• Open Faced Push Bar Design
• Direct Drive Hydraulic Motor
• Powder Coated Black Paint
• Internal cross porting for maximum flow
• Pressure relief valve to prevent motor damage
• Designed to be compatible with all Skid Steer Standard Flow GPM ratings
• Heavy duty bearing assembly for longevity

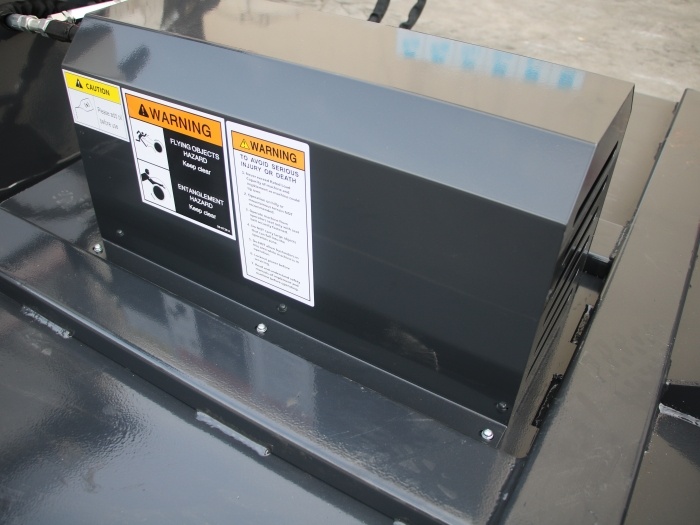

• Vented motor guard to prevent overheating while protecting the motor

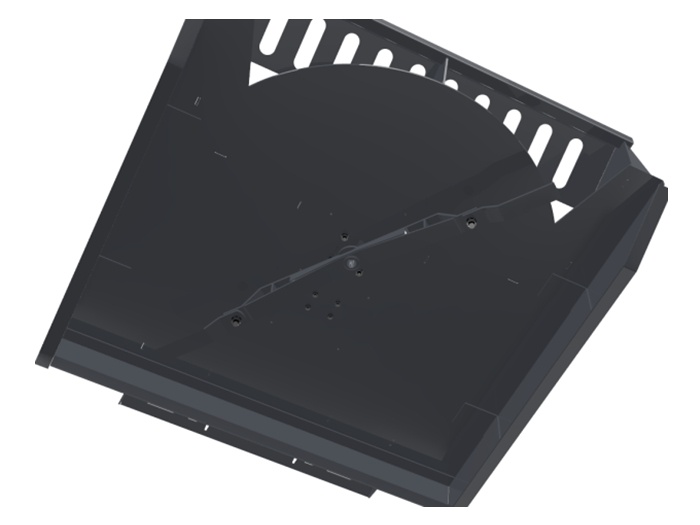

• Laser cut chain slots for maintaining safe cutting height
|
Num |
Item | Parameter |
|
1 |
Weight |
776 lbs |
|
2 |
Hydraulic Flow Required |
14-20 gpm |
| 3 | Cutting Blades | 2 |
| 4 | Material Cutting | Up to 3" dia |
| 5 | Cutting Width | 66 in |
| 6 | Wide (Overall) | 72 in |
| 7 | Height (Overall) | 21.6 in |
| 8 | Minimum Cutting Height | 2 in |
| 9 | Deck Thickness | 3/16 in |
| 10 | Length (Overall)) | 76 in |
